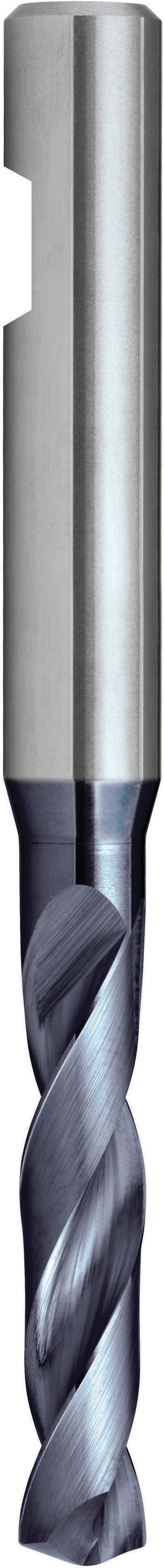

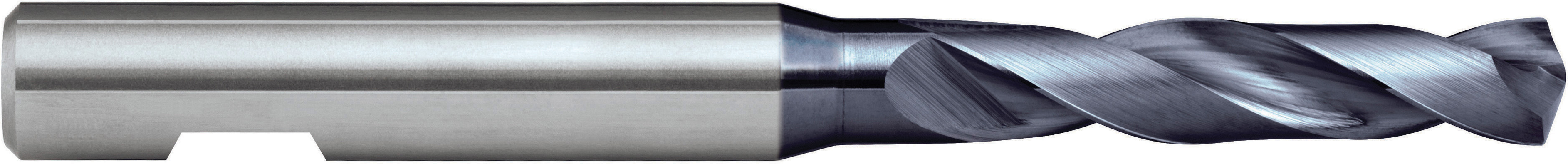

Name: Spiralbor, Hårdmetal, 3 x D, R30 N, Weldon
SKU: D324
Availability: InStock

Velegnet for materialer op til 1400N/mm2
Stærk kerne
Mikrogeometri og overfladebehandling for optimal spånstyring
AlCrN for maksimal standtid

Dimension variant	3,00, 3,10, 3,18, 3,20, 3,30, 3,40, 3,50, 3,57, 3,60, 3,70, 3,80, 3,90, 3,97, 4,00, 4,10, 4,20, 4,30, 4,37, 4,40, 4,50, 4,60, 4,70, 4,76, 4,80, 4,90, 5,00, 5,10, 5,16, 5,20, 5,30, 5,40, 5,50, 5,56, 5,60, 5,70, 5,80, 5,90, 5,95, 6,00, 6,10, 6,20, 6,30, 6,35, 6,40, 6,50, 6,60, 6,70, 6,76, 6,80, 6,90, 7,00, 7,10, 7,14, 7,20, 7,30, 7,40, 7,50, 7,54, 7,60, 7,70, 7,80, 7,90, 7,94, 8,00, 8,10, 8,20, 8,30, 8,33, 8,40, 8,50, 8,60, 8,70, 8,73, 8,80, 8,90, 9,00, 9,10, 9,13, 9,20, 9,30, 9,40, 9,50, 9,53, 9,60, 9,70, 9,80, 9,90, 9,92, 10,00, 10,10, 10,20, 10,30, 10,32, 10,40, 10,50, 10,60, 10,70, 10,80, 10,90, 11,00, 11,10, 11,11, 11,20, 11,30, 11,40, 11,50, 11,60, 11,70, 11,80, 11,90, 11,91, 12,00, 12,50, 12,70, 12,80, 13,00, 13,49, 13,50, 14,00, 14,29, 14,50, 14,80, 15,00, 15,50, 15,80, 15,88, 16,00, 16,50, 16,80, 17,00, 17,46, 17,50, 17,80, 18,00, 18,50, 19,00, 19,05, 19,50, 20,00
Skaftdiameter	10,00, 12,00, 14,00, 16,00, 18,00, 20,00, 6,00, 8,00
Skaft type	Cylindrisk med weldon, form HB
Belægning	AlCrN
Total længde	62, 66, 79, 89, 102, 107, 115, 123, 131
Velegnet til	Universal, type N
Dimension	3,00, 3,10, 3,18, 3,20, 3,30, 3,40, 3,50, 3,57, 3,60, 3,70, 3,80, 3,90, 3,97, 4,00, 4,10, 4,20, 4,30, 4,37, 4,40, 4,50, 4,60, 4,70, 4,76, 4,80, 4,90, 5,00, 5,10, 5,16, 5,20, 5,30, 5,40, 5,50, 5,56, 5,60, 5,70, 5,80, 5,90, 5,95, 6,00, 6,10, 6,20, 6,30, 6,35, 6,40, 6,50, 6,60, 6,70, 6,76, 6,80, 6,90, 7,00, 7,10, 7,14, 7,20, 7,30, 7,40, 7,50, 7,54, 7,60, 7,70, 7,80, 7,90, 7,94, 8,00, 8,10, 8,20, 8,30, 8,33, 8,40, 8,50, 8,60, 8,70, 8,73, 8,80, 8,90, 9,00, 9,10, 9,13, 9,20, 9,30, 9,40, 9,50, 9,53, 9,60, 9,70, 9,80, 9,90, 9,92, 10,00, 10,10, 10,20, 10,30, 10,32, 10,40, 10,50, 10,60, 10,70, 10,80, 10,90, 11,00, 11,10, 11,11, 11,20, 11,30, 11,40, 11,50, 11,60, 11,70, 11,80, 11,90, 11,91, 12,00, 12,50, 12,70, 12,80, 13,00, 13,49, 13,50, 14,00, 14,29, 14,50, 14,80, 15,00, 15,50, 15,80, 15,88, 16,00, 16,50, 16,80, 17,00, 17,46, 17,50, 17,80, 18,00, 18,50, 19,00, 19,05, 19,50, 20,00
Katalognummer	D324
Indvendig køling	Nej
Spirallængde	20, 24, 28, 34, 41, 47, 55, 60, 65, 73, 79
Type af bor	3xD, R30 N universal
Product Brand Group	Sutton Tools

Spiralbor, Hårdmetal, 3 x D, R30 N, Weldon
