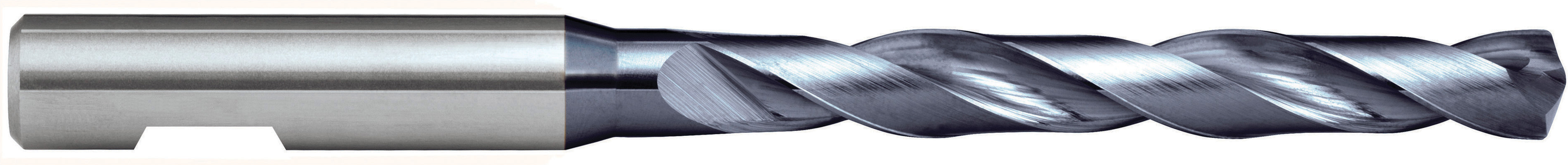

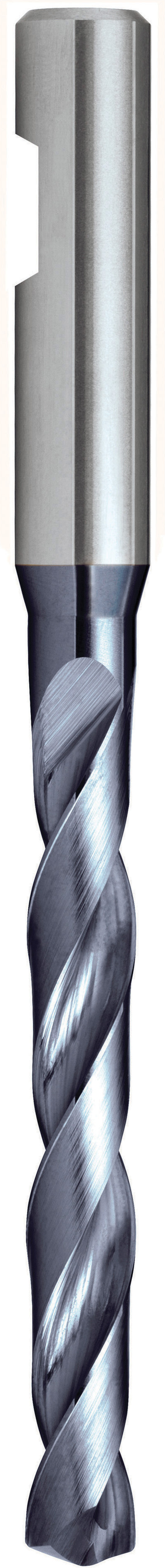

Spiralbor, Hårdmetal, 5 x D, R30 N , Weldon

Name: Spiralbor, Hårdmetal, 5 x D, R30 N , Weldon
SKU: D327
Availability: InStock

Velegnet for materialer op til 1400N/mm2
Stærk kerne
Mikrogeometri og overfladebehandling for optimal spånstyring
AlCrN for maksimal standtid

Vælg størrelse og antal

Dimension variant

Skaftdiameter

Skaft type

Belægning

Total længde

Velegnet til

Dimension

Katalognummer

Indvendig køling

Spirallængde

Type af bor

Product Brand Group

Ryd

Produktark

Beskrivelse
Yderligere information

Velegnet for materialer op til 1400N/mm2
Stærk kerne
Mikrogeometri og overfladebehandling for optimal spånstyring
AlCrN for maksimal standtid

Dimension variant	3,00, 3,10, 3,18, 3,20, 3,30, 3,40, 3,50, 3,57, 3,60, 3,70, 3,80, 3,90, 3,97, 4,00, 4,10, 4,20, 4,30, 4,37, 4,40, 4,50, 4,60, 4,70, 4,76, 4,80, 4,90, 5,00, 5,10, 5,16, 5,20, 5,30, 5,40, 5,50, 5,56, 5,60, 5,70, 5,80, 5,90, 5,95, 6,00, 6,10, 6,20, 6,30, 6,35, 6,40, 6,50, 6,60, 6,70, 6,76, 6,80, 6,90, 7,00, 7,10, 7,14, 7,20, 7,30, 7,40, 7,50, 7,54, 7,60, 7,70, 7,80, 7,90, 7,94, 8,00, 8,10, 8,20, 8,30, 8,33, 8,40, 8,50, 8,60, 8,70, 8,73, 8,80, 8,90, 9,00, 9,10, 9,13, 9,20, 9,30, 9,40, 9,50, 9,53, 9,60, 9,70, 9,80, 9,90, 9,92, 10,00, 10,10, 10,20, 10,30, 10,32, 10,40, 10,50, 10,60, 10,70, 10,80, 10,90, 11,00, 11,10, 11,11, 11,20, 11,30, 11,40, 11,50, 11,60, 11,70, 11,80, 11,90, 11,91, 12,00, 12,50, 12,69, 12,70, 12,80, 13,00, 13,49, 13,50, 13,80, 14,00, 14,29, 14,50, 14,80, 15,00, 15,50, 15,80, 15,88, 16,00, 16,50, 16,80, 17,00, 17,46, 17,50, 17,80, 18,00, 18,50, 19,00, 19,05, 19,50, 20,00
Skaftdiameter	10,00, 12,00, 14,00, 16,00, 18,00, 20,00, 6,00, 8,00
Skaft type	Cylindrisk med weldon, form HB
Belægning	AlCrN
Total længde	66, 74, 82, 91, 103, 118, 124, 133, 143, 153
Velegnet til	Universal, type N
Dimension	3,00, 3,10, 3,18, 3,20, 3,30, 3,40, 3,50, 3,57, 3,60, 3,70, 3,80, 3,90, 3,97, 4,00, 4,10, 4,20, 4,30, 4,37, 4,40, 4,50, 4,60, 4,70, 4,76, 4,80, 4,90, 5,00, 5,10, 5,16, 5,20, 5,30, 5,40, 5,50, 5,56, 5,60, 5,70, 5,80, 5,90, 5,95, 6,00, 6,10, 6,20, 6,30, 6,35, 6,40, 6,50, 6,60, 6,70, 6,76, 6,80, 6,90, 7,00, 7,10, 7,14, 7,20, 7,30, 7,40, 7,50, 7,54, 7,60, 7,70, 7,80, 7,90, 7,94, 8,00, 8,10, 8,20, 8,30, 8,33, 8,40, 8,50, 8,60, 8,70, 8,73, 8,80, 8,90, 9,00, 9,10, 9,13, 9,20, 9,30, 9,40, 9,50, 9,53, 9,60, 9,70, 9,80, 9,90, 9,92, 10,00, 10,10, 10,20, 10,30, 10,32, 10,40, 10,50, 10,60, 10,70, 10,80, 10,90, 11,00, 11,10, 11,11, 11,20, 11,30, 11,40, 11,50, 11,60, 11,70, 11,80, 11,90, 11,91, 12,00, 12,50, 12,69, 12,70, 12,80, 13,00, 13,49, 13,50, 13,80, 14,00, 14,29, 14,50, 14,80, 15,00, 15,50, 15,80, 15,88, 16,00, 16,50, 16,80, 17,00, 17,46, 17,50, 17,80, 18,00, 18,50, 19,00, 19,05, 19,50, 20,00
Katalognummer	D327
Indvendig køling	Nej
Spirallængde	28, 36, 44, 53, 61, 71, 77, 83, 93, 101
Type af bor	5xD, R30 N universal
Product Brand Group	Sutton Tools
